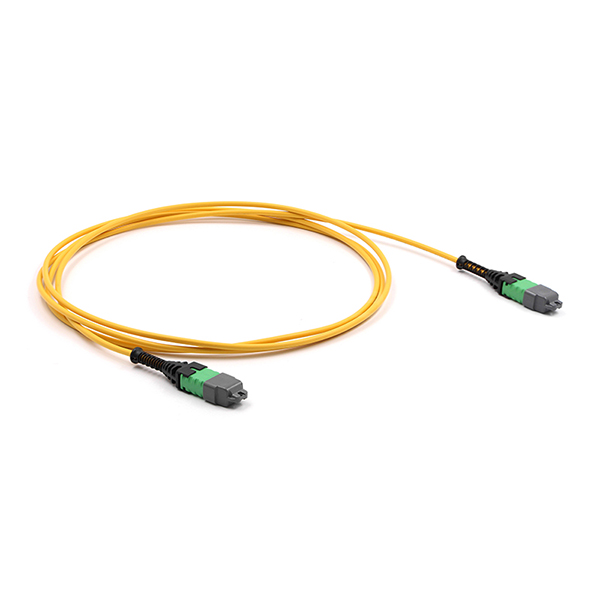

MPO APC Elite Pro Male to MPO APC Elite Pro Male Trunk Cable
Assembly 12 Fibers OS2 Yellow Jacket
The MPO trunk cables with a braided tubing jacket are typically
designed for a longer cable length in cabinet-to-cabinet
applications or for connecting different areas of a building. MPO
cable, a cost-effective alternative to time-consuming field
termination, is designed for high-density fiber patching in data
centers which need space saving and reduce cable management
problems.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it
offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions
using a compact and rugged microcables structre. The compact cable
optimize cableway use and improve airflow.
Applications of MPO Trunk Patch Cable
1. Datacenter
2. Telecommunication networks
3. High-density cross-connects
4. Optical switch inter-frame connection
Features of MPO MPO Trunk Patch Cable
1. Simple one-step color coded polarity change feature without
removing connector housing
2. Static dissipative material and housing sleeve encapsulating
geometry optimized to reduce debris
3. Robust push-pull insertion and extraction via the integrated
strain-relief boot for ease of use and access
4. RoHS and REACH compliant without exemptions
5. Field friendly configuration while maintaining product
integrity, fail safe handling of pins and easy color identification
Specifications of MPO Trunk Patch Cable
Connector | MPO PRO(Male) |
Fiber Mode | OS2 9/125μm |
Polishing Type | APC |
Connector IL | 0.35dB Max (0.15dB Typ.) |
Connector RL | ≥65dB |
Glass Fiber | Corning SMF-28® Ultra |
Fiber Grade | G.657.A1 (Compatible with G.652.D) |
Polish Type | APC to APC |
Attenuation at 1310nm | ≤0.4dB/km |
Attenuation at 1550nm | ≤0.3dB/km |
Long-term Tensile Load | 100N |
Short-term Tensile Load | 300N |
Storage Temperature | -40 to +85°C |
Operating Temperature | -20 to +85°C |
