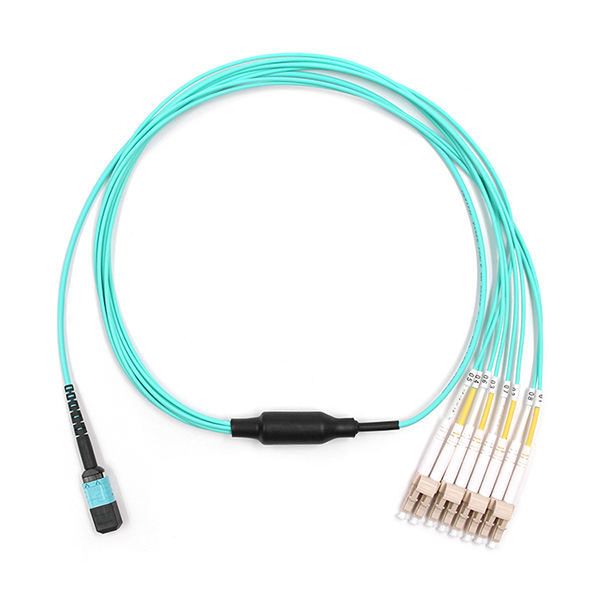

MPO Male to 4 LC Duplex Breakout Cable 8 Fibers OM3 OFNR Aqua
Jacket
The MPO Male to 4 LC Duplex Breakout Cable is a high-density
breakout cable with 8 optical fibers, which terminated with MPO
male connectors on one side and 4 duplex LC connectors on the other
side. MPO connectors can accommodate multiple optical fibers,
making cabling more compact and space saving. MPO to LC breakout
cable can simplify fiber cabling, making installation and
maintenance more convenient. They are suitable for 10G/40G data
transmission and information exchange, as well as applications with
fiber channels and unlimited bandwidth. This type of jumper is
commonly used in environments that require high-density fiber optic
cabling, such as data centers, telecommunications networks, and
local area networks.
Applications of MPO Breakout Patch Cable
1. Data Center Interconnect
2. High-Density Fiber Management
3. Telecommunication Networks and CATV networks
4. LAN/WAN Premises
Features of MPO Breakout Patch Cable
1. Low insertion loss and high return loss
2. High precision connector
3. PC UPC APC end face polish
4. Up to 288 fibers - ideal for high-density applications
5. 100% factory terminated and tested
6. Pulling eyes are provided as an option to protect the fiber ends
during installation
7. Save installation and reconfiguration time
8. Customized length available
9. ROHS Compliant
Specifications of MPO Breakout Patch Cable
Connector | MPO(Female) | LC Uniboot |
Fiber Mode | OM3 50/125μm | OM3 50/125μm |
Polishing Type | UPC | UPC |
Connector IL | 0.35dB Max (0.15dB Typ.) | ≤0.2dB |
Connector RL | ≥20dB | ≥30dB |
Wavelength | 850/1300nm |
Glass Fiber | Corning ClearCurve® |
10G Ethernet Distance | 400m at 850nm |
Attenuation at 850nm | ≤2.3dB/km |
Attenuation at 1300nm | ≤0.6dB/km |
Installation Tensile Load | 66N |
Tensile Strength (Long/Short Term) | 80/240N |
Storage Temperature | -40 to +85°C |
Operating Temperature | -20 to +85°C |
