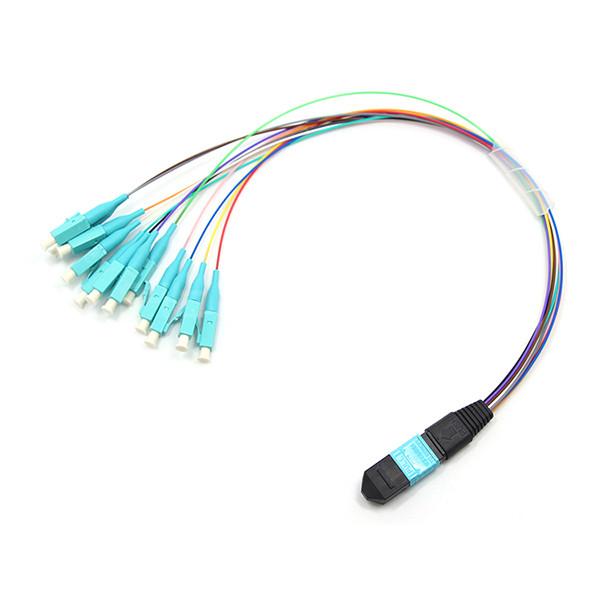

MPO Male to LC/UPC Harness Fanout Cable 12 Fibers OM3 50/125 10G
Hytrel Jacket
MPO (Multi Fiber Optic Connector) Fanout cable is a special cable
used for fiber optic communication. It distributes multiple fibers
from one MPO connector to multiple single fiber connectors. This
MPO connector connects 12 fibers, while Fanout cable distributes
these fibers to multiple LC UPC single fiber connectors. This cable
is commonly used in data centers, high-speed networks, and other
places that require a large number of fiber optic connections,
helping to simplify cabling and connection management.
Applications of MPO to LC Breakout Patch Cable
1. Data Center
2. High-Density Fiber Management
3. Network infrastructure
4. LAN/WAN Premises
Features of MPO to LC Breakout Patch Cable
1. Low insertion loss and high return loss
2. High precision connector
3. PC UPC APC end face polish
4. Up to 288 fibers - ideal for high-density applications
5. 100% factory terminated and tested
6. Pulling eyes are provided as an option to protect the fiber ends
during installation
7. Save installation and reconfiguration time
8. Customized length available
9. ROHS Compliant
Specifications of MPO Breakout Patch Cable
| Connector | MPO(Female) | LC Uniboot |
| Fiber Mode | OM3 50/125μm | OM3 50/125μm |
| Polishing Type | UPC | UPC |
| Connector IL | 0.35dB Max (0.15dB Typ.) | ≤0.2dB |
| Connector RL | ≥20dB | ≥30dB |
| Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® |
| 10G Ethernet Distance | 400m at 850nm |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 66N |
| Tensile Strength (Long/Short Term) | 80/240N |
| Storage Temperature | -40 to +85°C |
| Operating Temperature | -20 to +85°C
|
