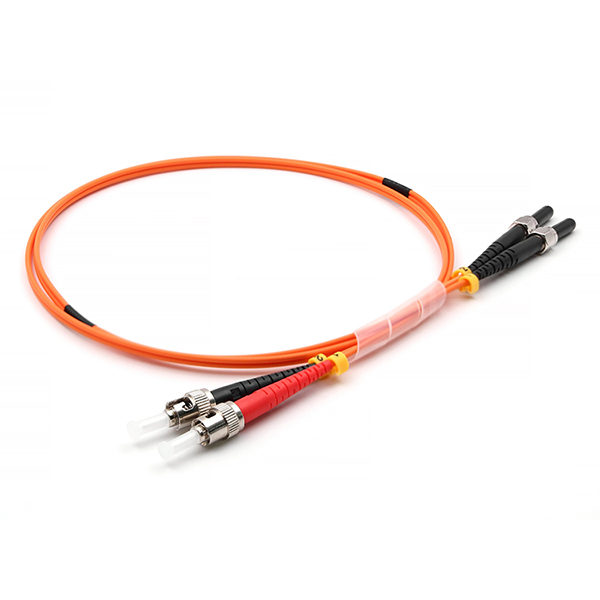

ST UPC To SMA905 Fiber Optic Patch Cable Simplex 62.5/125 OM1
Multimode OFNR 2.0mm Orange
The 62.5/125μm OM1 multimode fiber optic cable is a type of optical fiber used for transmitting optical signals and
belongs to the category of multimode fibers. The core diameter of
OM1 fiber is 62.5 microns, which allows it to support the
transmission of multiple optical modes. It is usually suitable for
short distance data transmission and is suitable for use in local
area network (LAN) environments. Commonly used in old Ethernet,
building internal wiring, short distance connections, and other
occasions
Applications
1. Data centers
2. Ethernet applications
3. FTTH applications
4. Backbone, horizontal and riser applications
5. Video, data and voice services
6. Test equipment applications
Features
1. ST/UPC and SMA905 connectors
2. Available in different fiber types including OS2, OM1, OM2, OM3,
OM4, OM5
3. OFNR, OFNP and LSZH jacket available
4. Available as hybrid patch cords with different connector types
including FC, LC SC, ST, etc.
5. Available in standard and custom lengths
6. UL, RoHS materials compliant
Specifications
| Characteristics | Standard Fiber Cable Assemblies |
| Connector Type | ST to SMA905 |
| Polish Type | UPC to UPC |
| Ferrule Materials | Zirconia Ceramic |
| Fiber Type | OM1 62.5/125μm |
| Testing Wavelength | 850/1300nm |
| Min. Bend Radius(Fiber Core) | 15mm |
| Min. Bend Radius(Fiber Cable) | 20/10D (Dynamic/Static) |
| Exchangeability | ≤0.2dB |
Attenuation at 850nm | 3.0 dB/km |
Attenuation at 1300nm | 1.0 dB/km |
| Polarity | A (Tx) to B (Rx) |
| Operating Temp. (C) | -20℃ ~+70℃ |
| Storage Temp. (°C) | -40℃ ~ +85℃ |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
