    LC UPC Fiber Patch Cable , LSZH Single Mode OS2 Fiber Cable 4.8mm Black

    Ask Lasest Price
    Brand Name : FiberMania
    Model Number : LCTLCT-SM024RBK
    Certification : ISO, UL, CE, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000 Pieces per day
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    LC UPC Fiber Patch Cable , LSZH Single Mode OS2 Fiber Cable 4.8mm Black

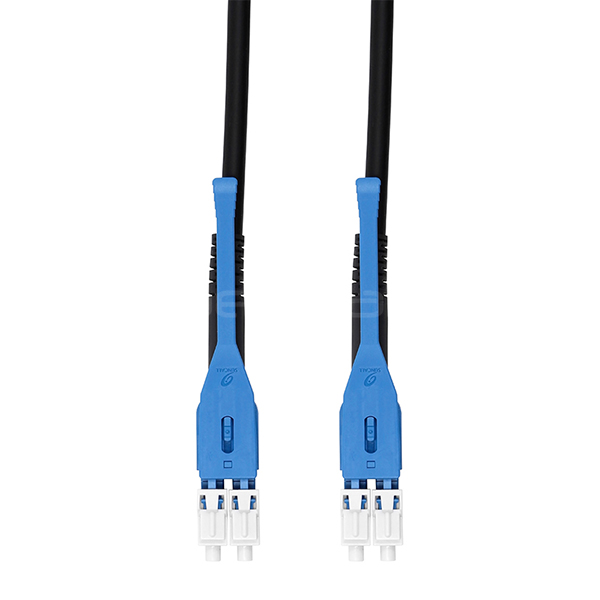

    LC UPC Uniboot With Pull Tab Fiber Optic Patch Cable Single Mode OS2 OFNR 4.8mm Black
    This duplex fiber optic patch cable is made of single-mode 4.8mm LSZH optical cable, and both ends of the jumper are terminated with LC UPC Uniboot connectors (LC/UPC-LC/UPC). The design of Uniboot allows two optical fibers to be carried by a one jacket, improving airflow and cable management in tight spaces and achieving high-density cabling. By combining push Tab connectors, LC Uniboot fibers can be easily inserted and removed from high-density cabling without the need for tools. This LC UPC Uniboot with pull tab jumper can support high bandwidth applications with various transmission speeds. It can transmit up to 10km of data at 1310nm wavelength and up to 40km of data at 1550nm wavelength, such as data centers and wide area networks. Single mode optical cables have become an ideal choice for modern communication systems and high data rate applications.

    Applications Of Fiber Optic Patch Cable
    1. Data centers
    2. Ethernet applications
    3. FTTH applications
    4. Video, data and voice services
    5. Test equipment applications
    Features Of Fiber Optic Patch Cable
    1. LC/UPC uniboot with Pull Tab connectors easy for installation
    2. High Speed,
    High efficiency, Single Mode
    3. Better signal transmission and cable management
    4. Widely applicable
    5. UL, RoHS materials compliant

    Specifications Of Fiber Optic Patch Cable

    CharacteristicsStandard Fiber Cable Assemblies
    Connector TypeLC Uniboot to LC Uniboot
    Polish TypeUPC to UPC
    Ferrule MaterialsZirconia Ceramic
    Fiber TypeSingle Mode(G.657A1)
    Testing Wavelength1310/1550nm

    Min. Bend Radius(Fiber Core)

    10mm

    Min. Bend Radius(Fiber Cable)

    10/5D (Dynamic/Static)

    Exchangeability≤0.2dB

    Attenuation at 1310 nm

    0.36dB/km

    Attenuation at 1550 nm

    0.22dB/km

    Polarity

    A (Tx) to B (Rx)

    Operating Temp. (C)-20℃ ~+70℃
    Storage Temp. (°C)-40℃ ~ +85℃

    FAQ

    Q1: What is the warranty of FiberMania's fiber patch cord?
    A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

    Q2: Is it possible to customize our brand information on your fiber cable?
    A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

    Q3: Can you do 3D interferometer test?
    A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

    Q4: What is your MOQ of your products?
    A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

    Q5: Are free samples available from you?
    A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.

    Q6: Do you accept OEM and ODM orders?
    A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
