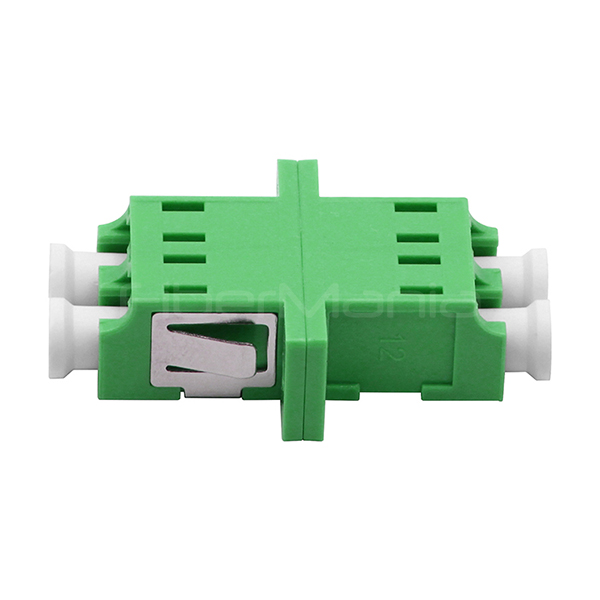

LC APC To LC APC Single Mode Duplex Plastic Fiber Optic Adapter –
Green
Fiber optic adapters are essential components in fiber optic
networks, used in patch panels or other outlets to connect two
connectors. These compact devices, also known as couplers, are
available for all standard connector types in both single-mode and
multimode configurations, including simplex and duplex versions.
Manufactured using high-precision machinery, our fiber optic
adapters ensure accurate alignment of connectors when plugged in,
maximizing light transmission while minimizing signal loss. They
are color-coded for easy identification and include hybrid and
specialized options such as bare, shuttered, and metal housing
variants. Each fiber optic adapter undergoes functional testing
before shipping to guarantee reliable performance, offering
advantages like low insertion loss, excellent interchangeability,
and high repeatability.
Features
1. Single mode and Multimode;
2. Meet JIS5974 and bellcore GR-326 standard;
3. All parts compliant with ROHS;
4. Zirconia sleeves or Phosphor bronze sleeves;
5. NTT standard compatible;
6. Available without flanges or with flange for duplex, saving
panel space;
7. Compliant with IEC874-14 & IEC874-19;
Application
1. Data center
2. Telecommunication networks
3. Premise installations
4. LAN and WAN
5. FTTX
6. Broadband network
Mechanical Specifications
| Operating Temperature | -40 to +75º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability | 500 Mating Cycles, clean every 25, <0.2dB change |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
