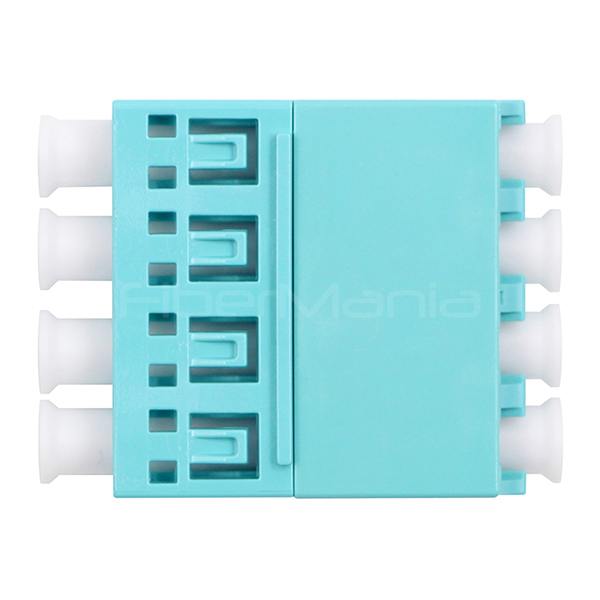

LC To LC OM3 Multimode Aqua Quad Fiber Optic Adapter No Flange With
Interal Automatic Dust Cap
Fiber optic adapters are typically designed to connect two fiber
optic patch cables together. They come in various types, most
adapters are female on both ends to connect two patch cables, while
some adapters are male to female which allow the port to accept a
different connector than for which it was originally designed, and
we also assemble hybrid adapters which accept different types of
connects.
Features
1. Low insertion loss
2. Environmentally stable
3. Good Insertion/Extraction life
4. Easy installation
5. Visible light can be still be seen through the adapter when
trying to trace signal with a VFL light source
Application
1. Fiber Telecommunications
2. Optical Security, CATV, FTTx
3. Local, Wide and Global Area Networks
4. High EMI / RFI environments
5. Racks and Panels / Server Rooms
Standards Compliance
1. ISO/IEC 11801
2. Cenelec EN 50173-1 / 50173-5
3. ANSI/TIA-568 D.3
4. ISO/IEC 24764/ TIA-942
Technical & Mechanical Properties
| Mode Type | OM3 - Aqua |
| Ferrule diameter | 1.25mm |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection method | LC Female |
| Degree of protection | IP20 |
| Ambient temp. (operation) | -40°C ~ +80°C |
| Ambient temp. (storage) | -40°C ~ +85°C |
| Number of fibers | Quad - 4 Fiber |
| Housing material | Plastic |
| Ferrule material | Zirconia ceramics |
| Sleeve Pull Force | 0.1 - 0.3kg |
| Insertion Loss (dB) | ≤0.2dB |
| Flange / Flangeless | Flangeless |
| Return Loss (dB) Multimode | UPC ≥ 30 dB |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
