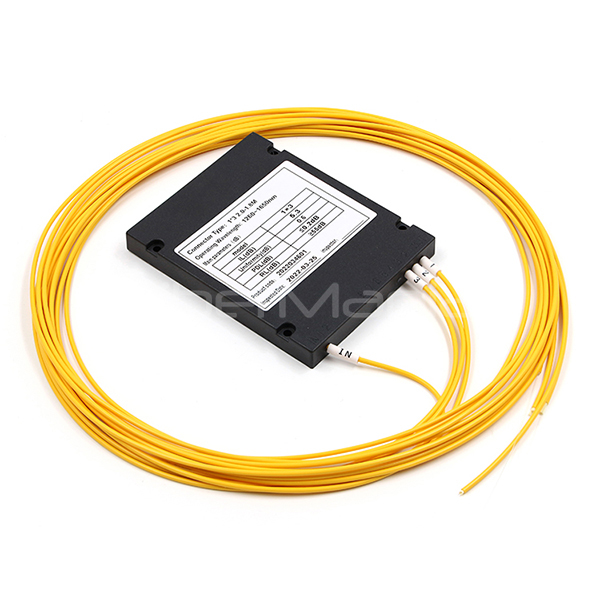

1X3 PLC Splitter With ABS Module Input Of Output 2.0mm Without
Fiber Connectors
PLC splitters are typically constructed from high-quality silicon
or quartz materials, featuring a compact design that accommodates
various configurations, such as 1×2, 1×4, and 1×8, to suit
different application requirements. These splitters utilize
waveguide technology to facilitate the distribution of optical
signals through microstructures integrated into an optical
substrate. When an optical signal enters the input port, it passes
through a specially designed waveguide network, which evenly
distributes the signal to multiple output ports. PLC splitters are
known for their compact structure and small form factor, supporting
a wide range of configurations, from 1×2 to 1×64, allowing for
diverse splitting ratios that meet various operational needs.
Features
1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package
Applications
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
Specifications
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | SMF-28e or customer specified |
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
FAQ
Q1: Is this product able to join two different optical signals into
a single fiber?
A: This product is mainly used for splitting light beams. It is not
advised to use it for joining different optical signals into a
single fiber.
Q2: I've got a SC splitter, and I want to extend the cable length
now. Can I use a adapter and SC fiber optics to make it? Will this
affect the signal attenuation and insertion loss?
A: It will work. You’d better use a good quality cable to diminish
the impact.
Q3: Why is the connector color green? what is the difference
between green and blue? Thanks, Alex
A: The two colors distinguish the polishing method. The blue
represents the UPC polishing method, the green represents the APC
polishing method, and the green one in the pic is the SC/APC
connector, the blue one in the pic is the SC/UPC connector.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
