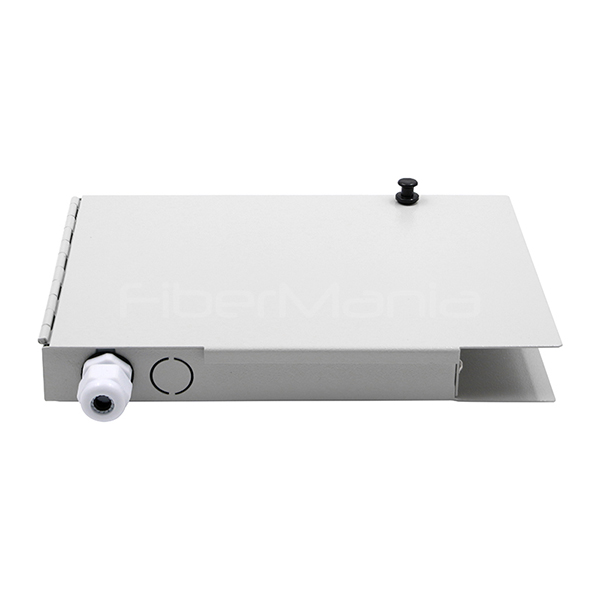

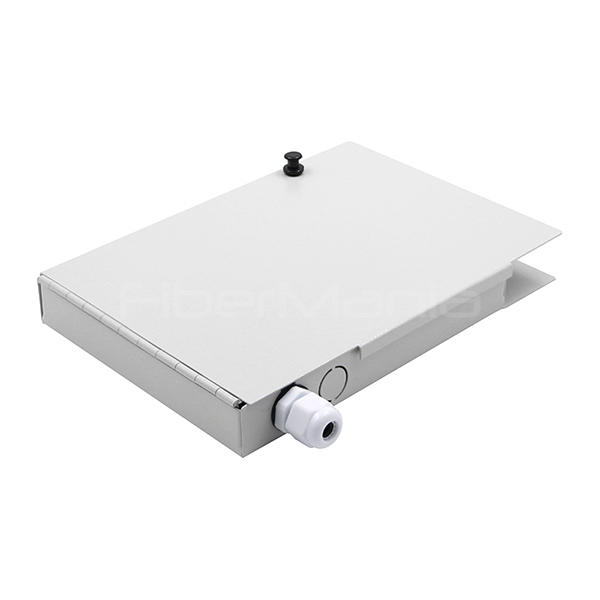

Fiber Optic Termination Box 6 Ports SC Simplex Type Metal Housing
For Indoor Use
This 6-port wall-mountable FTTH fiber termination box efficiently
organizes and protects fiber optic connections in a compact space.
The removable front panel accommodates up to 4 SC simplex ports or
4 LC duplex ports with an SC footprint. This termination box
includes an integrated 12-splice sleeve holder and cable management
wire guides inside the enclosure for enhanced organization.
Constructed from durable metal and finished with a light grey
coating, this box is designed to safeguard your fiber connections
against harsh outdoor environments. Additionally, it features a
single door with a locking mechanism for added security. This fiber
termination box is commonly used in residential buildings,
apartments, and commercial spaces, making it a versatile solution
for various applications.
Features
1. 16 Fiber 8 duplex LC FTTH fiber termination box
2. 8 LC duplex(SC footprint)
3. Integrated 12 splice sleeve holder and cable management wire
guides
4. Wall mountable design
5. Metal construction for durability
6. Cabinet can be installed by the way of wall-mounted or
poled-mounted, suitable for both indoor and outdoor uses.
Application
1. FTTH access network
2. Can be installed on the wall
3. Applicable for various optical connection styles
4. CATV network
5. Telecommunication network
6. Local area network
Specifications
| Work Temperature | -40 C ~+85 C |
| Relative Humidity | ≤ 85% (+30 C) |
| Atmospheric Pressure | 70Kpa~106Kpa |
| Insert Loss | ≤ 0.2dB |
UPC Return Loss | ≥ 50dB |
APC Return Loss | ≥ 60dB |
| Pull out Life Insulation | ≥ 1000 times |
| Box Size | 140x130x36mm |
