GYXTC8S Figure 8 Central Loose Tube Armored Outdoor Optical Fiber
Cable
GYXTC8S fiber optic cable is a figure 8 structure cable suitable
for installation in the aerial environment for long haul
communications.
GYXTC8S features the centrally situated loose tube with good excess
length and minimize the influence of lateral crush. The water
resistant tape provides watertight property. Corrugated steel tape
armor and the PE outer sheath of GYXTC8S fiber optic cable provide
crush resistance and gunshot resistance. The cross-section shows
figure 8. Stranded wires as self-supporting member providing
excellent strain performance and convenient installation for this
GYXTC8S fiber cable.
Features of aerial fiber optic cable
1. The high tensile strength of stranded wires meet the requirement
of self-supporting
2. Good mechanical and temperature performance
3. High strength loose tube that is hydrolysis resistant
4. Special tube filling compounds ensure a critical protection of
fiber
5. The following measures are taken to ensure the cable is
watertight
6. Loose tube filling compound
7. 100% cable core filling
8. Steel tape moisture barrier

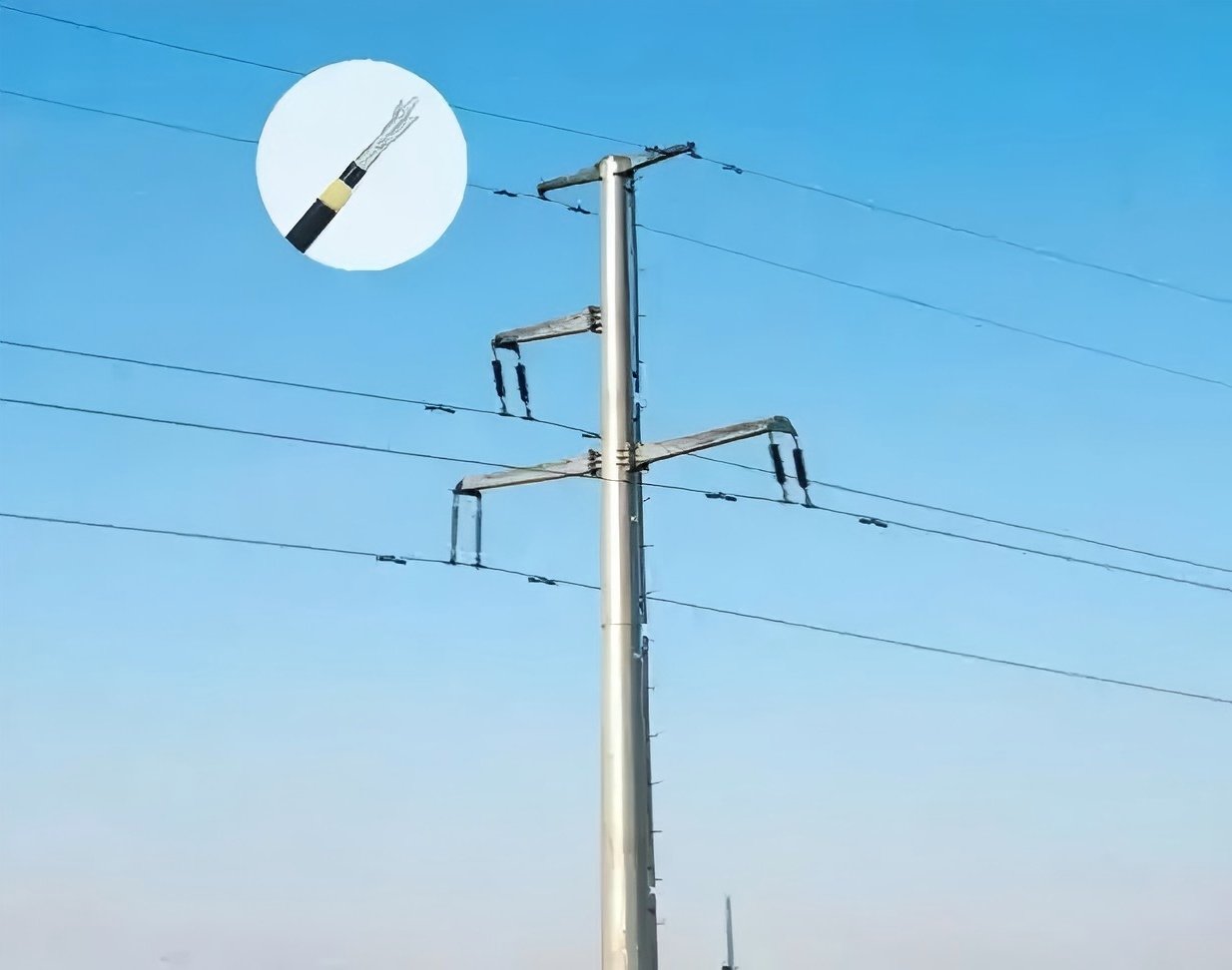

Application of aerial fiber optic cable
1. Adopted to outdoor distribution;
2. Suitable for aerial, pipeline laying method;
3. Long distance and local area network communication.
Specification of aerial fiber optic cable
| No. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 1 | 2 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 4 | 3 | 1 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| The thickness of loose tube(±0.05mm) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
|
| Outer diameter (±0.5mm) | 5.4X8.6 | 5.4X8.6 | 5.4X8.6 | 5.4X9.8 | 5.4X10.8 | 5.4X12.2 | 5.4X14.9 |
| -15 | -15 | -15 | -16.5 | -17.5 | -19 | -22 |
| The thickness of outer diameter(±0.1mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
|
| Loose tube | Material | PBT | Color | Standard spectrum |
| Water blocking system | Material | Water blocking tape / Filling gel |
| Armor | Material | Corrugated steel tape |
| Central strength member | Material | Steel wire | Size | 1.4mm(6-48) |
| 2.0mm(72-144) |
| Mental strength member | Material | Stranded steel wire | Size | 1.0mm*7 |
| Gallus | Material | PE | Size(h*w) | 2.0*1.5mm |
|
| Outsheath | Material | PE | Color | Black |
Packaging & Shipping
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of
five (5) years from the date of supply. All fiber optic bulk cables
are UL profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may
consider stock the bulk cable with us for your urgent order
production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under
50 US dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
