Custom Fiber Optic Cables Single Mode Fiber Distribution Cable

Ask Lasest Price
Brand Name :	FIBERMANIA
Model Number :	FOCI-D12-G2-C-YL-1KM
Certification :	ISO, UL, CE, RoHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1000 Pieces

Add to Cart

Product Details
Company Profile

Custom Fiber Optic Cables Single Mode Fiber Distribution Cable

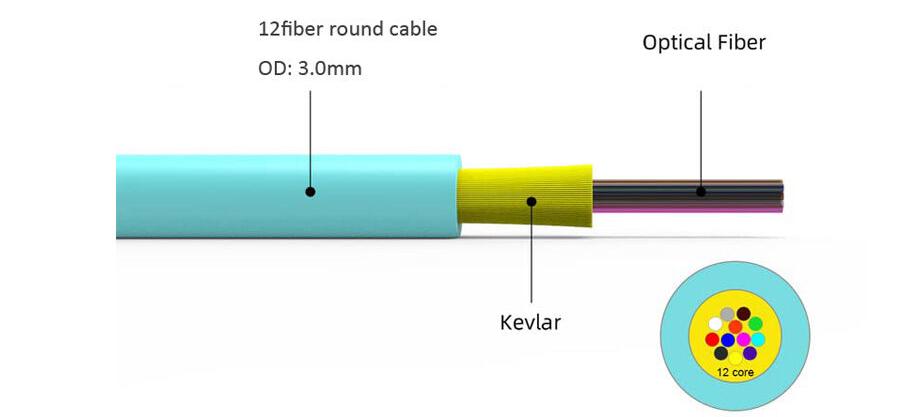

Multi-fiber Distribution Indoor Cable

Multi-fiber cable is a type of cable used for indoor optical fiber communication, mainly used to introduce optical signals from the cable to the user terminal or to distribute multiple fiber channels. This type of cable usually contains multiple fibers, usually consisting of two or more fibers, and is suitable for high-density fiber cabling needs. It is suitable for the internal wiring of data centers, enterprise networks, campus networks and other places, and can meet the needs of high bandwidth and high-speed data transmission.

we manufactures a wide range of cables from 2-144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Features

1. More fiber connections in a limited space

2. Suitable for different installation environments, easy wiring and maintenance

3. Provides low loss, high bandwidth data transmission

4. Meet various requirements of clients

Application
1. Used in indoor cabling, especially used as distribution cable

2. Used as interconnect lines of equipment, and used in optical connections in optical communication equipment rooms and distribution frames

3. Used in pigtails and patch cords

Specification

Cable Parameter
Item		Specification
Fiber Count		2	4
Sub-unit Jacket	Material	LSZH
	Thickness	0.4mm±0.05mm
	OD	2.0mm±0.2mm
Armored Layer	Material	SUS204
	OD	4.8mm±0.3mm	6.0mm±0.3mm
	Thickness	0.4mm±0.05mm
	Gap	0.3mm±0.10mm
Strength Member		Aramid Yarn
Outer Jacket	Material	LSZH
	Color	Black
	Thickness	0.9mm±0.1mm	1.1mm±0.1mm
	OD	7.0mm±0.3mm	7.5mm±0.1mm 8.0mm±0.1mm

Mechanical and Environmental Characteristics
Item		Specification
Fiber Count		2	4
Tension Resistance (N)	Long Term	≥ 600	≥ 800
	Short Term	≥ 1000	≥ 1200
Crush Resistance (N/10cm)		≥ 3000
Nominal Weight (kg/km)		65	85
Operating Temperature ( ºC)		-40 ~ +80
Storage Temperature ( ºC)		-40 ~ +80

Fiber Parameters
Single Mode
Item		Unit	G652D	G657A1	G657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-circularity		%	≤ 1	≤ 0.7	≤ 0.7
Core-cladding Concentricity Error		μm	≤ 0.6	≤ 0.5	≤ 0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity Error		μm	≤ 12.0	≤ 12.0	≤ 12.0
Cable Cutoff Wavelength		nm	≤ 1260	≤ 1260	≤ 1260
Attenuation Coefficient	1310nm	dB/km	≤ 0.4	≤ 0.4	≤ 0.4
Attenuation Coefficient	1550nm	dB/km	≤ 0.3	≤ 0.3	≤ 0.3

Multimode
Item		Unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-circularity		%	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0
Cladding Non-circularity		%	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0
Core-cladding Concentricity Error		μm	≤ 1.5	≤ 1.5	≤ 1.0	≤ 1.0	≤ 1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity		μm	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0
OFL Bandwidth	850nm	MHz·km	≥ 160	≥ 500	≥ 700	≥ 1500	≥ 3500
OFL Bandwidth	1310nm	MHz·km	≥ 500	≥ 500	≥ 500	≥ 500	≥ 500
Attenuation Coefficient	850nm	dB/km	≤ 3.0	≤ 3.0	≤ 3.0	≤ 3.0	≤ 3.0
Attenuation Coefficient	1310nm	dB/km	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of
five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may
consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open
the new tooling for your specific project.
