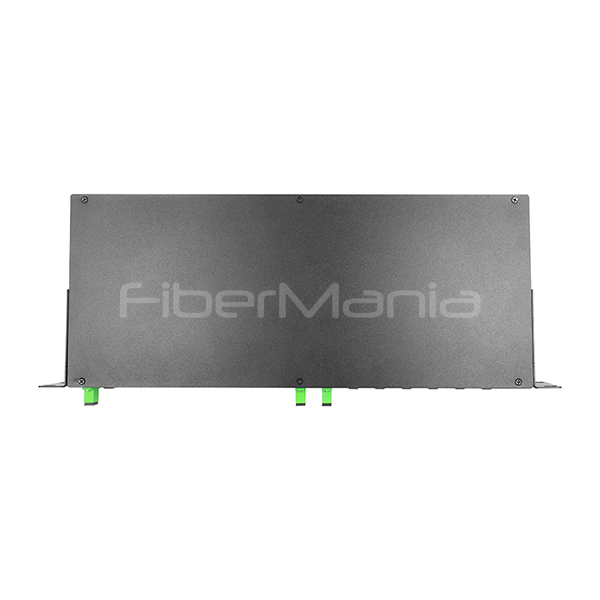

1U 19” Rack Mount Optical PLC Splitter with 1×2 SC APC Connectors
and Adapters Loaded
(Rack type: No connector, SC/UPC, SC/APC...FC can be choosen).PLC
(Planar Lightwave Circuit) splitters are Single Mode Splitters with
an even split ratio from one input fiber to multiple output fibers.
It is based on planar lightwave circuit technology and provides a
low cost light distribution solution with small form factor and
high reliability. We provide a various of 1×N and 2×N PLC
splitters, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type
fiber PLC splitters. They are all with superior optical
performance, high stability and high reliability to meet various
application requirements.
Features
1. Broadband Operation Wavelength
2. Low Insertion loss
3. Low PDL
4. Compact Design
5. Good channel-to-channel uniformity
6. High Reliability and Stability
7. Pass Telcordia GR-1209-Core Reliability Test
8. Pass Telcordia GR-1221-Core Reliability Test
9. RoHS Compliance
Applications
1. Fiber optical access network
2. Passive fiber optical network
3. Cable TV network
4. Digital communication
5. Fiber optical sensing system
6. Test equipment
Specifications
| Item | Unit | Parameter |
| Operating Wavelength | (nm) | 1260 ~ 1650 |
| 1×N PLC Splitter | -- | 1×2 | 1×4 | 1×8 | 1×16 | 1×64 | 1×128 |
| Insertion Loss | MAX(P/S)* | (dB) | 3.8/4.0 | 7.0/7.4 | 10.5/10.7 | 13.6/13.9 | 21/21.5 | 24/24.5 |
| Uniformity | MAX(P/S) | (dB) | 0.6/0.6 | 0.6/0.7 | 0.8/1.0 | 0.9/1.2 | 1.7/1.9 | 2.2/2.5 |
| Return Loss | MIN | (dB) | 55 |
| PDL | MAX(P/S) | (dB) | 0.15/0.25 | 0.15/0.25 | 0.2/0.25 | 0.2/0.3 | 0.25/0.35 | 0.4/0.45 |
| 2×N PLC Splitter | -- | 2×2 | 2×4 | 2×8 | 2×16 | 2×64 | -- |
| Insertion Loss | MAX(P/S) | (dB) | 4.0/4.3 | 7.4/7.6 | 10.7/11.0 | 14/14.5 | 21.4/21.9 | -- |
| Uniformity | MAX(P/S) | (dB) | 0.9/1.1 | 1.0/1.2 | 1.0/1.2 | 1.2/1.5 | 2.0/2.3 | -- |
| Return Loss | MIN | (dB) | 55 |
| PDL | MAX(P/S) | (dB) | 0.25/0.3 | 0.25/0.3 | 0.25/0.3 | 0.3/0.35 | 0.35/0.4 | -- |
| Fiber Type | -- | ITU-T G657A1, G657A2 |
| Temperature Stability(-40~85ºC) | MAX | (dB) | 0.5 (Typical 0.3) |
| Operating Temperature | (ºC) | -40 ~ 85 |
| Storage Temperature | (ºC) | -40 ~ 85 |
FAQ
Q1: I know that ~5 nanoseconds of propagation delay per meter of
singlemode fiber is expected. Since both FBT and PLC splitters are
passive, is there a latency difference between them?
A: No, both FBT and PLC have no delay issues.
Q2: Does it come with internal splitters?
A: Yes, I purchased it. It does.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: I've got a SC splitter, and I want to extend the cable length
now. Can I use a adapter and SC fiber optics to make it? Will this
affect the signal attenuation and insertion loss?A: It will work.
You’d better use a good quality cable to diminish the impact.
