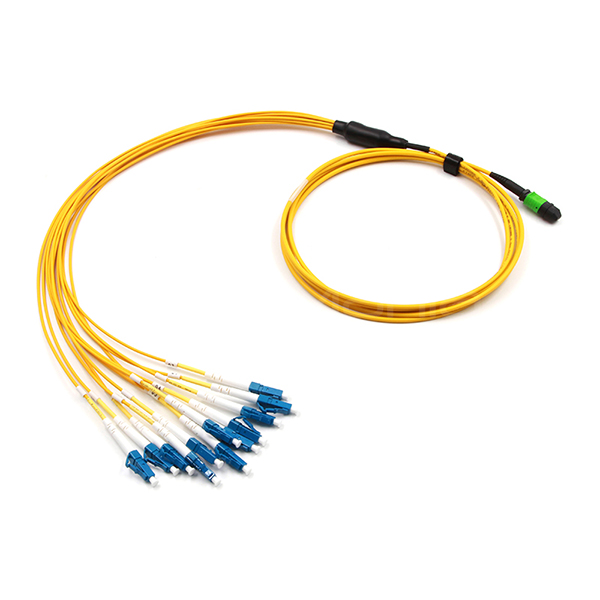

Data Center 12-Fiber MPO to LC Breakout Patch Cable with a 2.0mm
Single Mode 9/125 OFNP Plenum Yellow Jacket
12 Fiber MPO to LC Breakout Patch Cable is a high-density fiber
optic patch cord that features 12 fiber MPO (Multi fiber Push On)
connectors on one side and multiple LC (Lucent Connector)
connectors branching off on the other side. MPO to LC branch
jumpers simplify fiber optic cabling, making installation and
maintenance more convenient. They are suitable for 10G/40G data
transmission and information exchange, as well as fiber channel and
infinite bandwidth applications. This type of jumper is commonly
used in environments that require high-density fiber optic cabling,
such as data centers, telecommunications networks, and local area
networks.
Applications of MPO Breakout Patch Cable
1. Data Center Interconnect
2. High-Density Fiber Management
3. Telecommunication Networks and CATV networks
4. LAN/WAN Premises
Features of MPO Breakout Patch Cable
1. Low insertion loss and high return loss
2. High precision connector
3. PC UPC APC end face polish
4. Up to 288 fibers - ideal for high-density applications
5. 100% factory terminated and tested
6. Pulling eyes are provided as an option to protect the fiber ends
during installation
7. Save installation and reconfiguration time
8. Customized length available
9. ROHS Compliant
Specifications of MPO Breakout Patch Cable
Connector | MPO(Male) | LC |
Fiber Mode | OS2 9/125μm | OS2 9/125μm |
Polishing Type | APC | UPC |
Connector IL | 0.35dB Max (0.15dB Typ.) | ≤0.2dB |
Connector RL | ≥60dB | ≥50dB |
Wavelength | 1310/1550nm |
Glass Fiber | Corning SMF-28® Ultra |
Fiber Grade | G.657.A1 (Compatible with G.652.D) |
Attenuation at 1310nm | ≤0.32dB/km |
Attenuation at 1550nm | ≤0.18dB/km |
Installation Tensile Load | 66N |
Tensile Strength (Long/Short Term) | 80/240N |
Storage Temperature | -40 to +85°C |
Operating Temperature | -20 to +85°C |
