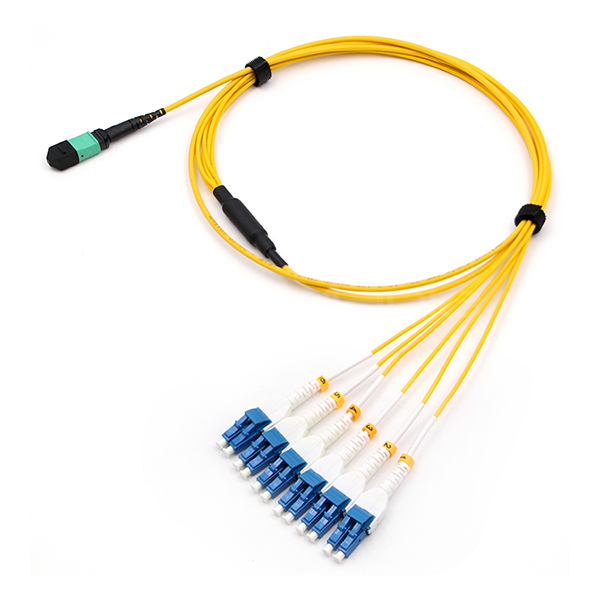

    MPO/APC Male To 6 LC Uniboot Single Mode Breakout Cable OFNR Yellow Jacket

    Ask Lasest Price
    Brand Name : FiberMania
    Model Number : MAMLCU-SM12M3RYL
    Certification : ISO, UL, CE, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000 Pieces per day
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    MPO/APC Male To 6 LC Uniboot Single Mode Breakout Cable OFNR Yellow Jacket

    MPO/APC Male to 6 LC Uniboot Breakout Cable 12 Fibers Single Mode OFNR Yellow Jacket

    The MPO fanout cable is a cost-effective solution to the labor-intensive field termination process. It is specifically designed for high-density, high-performance fiber patching in data centers where space constraints and cable management pose significant challenges. MPO fanout cables are particularly suitable for organizations seeking to transition their standard fiber networks to a high-density MTP/MPO configuration while maintaining superior fiber connectivity. These cables are also referred to as MPO breakout cables. MPO breakout cables are equipped with either a female or male MPO connector at one end and a duplex LC, FC, SC, or ST connector at the opposite end. These breakout cables are generally well-suited for short-range direct connections operating at 10G-40G and 25G-100G. The acronym MPO refers to Multifiber Termination Push On. It is essential to maintain the cleanliness of fiber optic end faces, as this is a crucial requirement for ensuring reliability and optimal performance in connections.

    Applications of MPO Breakout Patch Cable

    1. Data Center Interconnect

    2. High-Density Fiber Management

    3. Telecommunication Networks and CATV networks

    4. LAN/WAN Premises

    Features of MPO Breakout Patch Cable

    1. Low insertion loss and high return loss

    2. High precision connector

    3. PC UPC APC end face polish

    4. Up to 288 fibers - ideal for high-density applications

    5. 100% factory terminated and tested

    6. Pulling eyes are provided as an option to protect the fiber ends during installation

    7. Save installation and reconfiguration time

    8. Customized length available

    9. ROHS Compliant

    Specifications of MPO Breakout Patch Cable

    Connector

    MPO(Male)

    LC Uniboot

    Fiber Mode

    OS2 9/125μm

    OS2 9/125μm

    Polishing Type

    APC

    UPC

    Connector IL

    0.35dB Max (0.15dB Typ.)

    ≤0.2dB

    Connector RL

    ≥60dB

    ≥50dB

    Wavelength

    1310/1550nm

    Glass Fiber

    Corning SMF-28® Ultra

    Fiber Grade

    G.657.A1 (Compatible with G.652.D)

    Attenuation at 1310nm

    ≤0.32dB/km

    Attenuation at 1550nm

    ≤0.18dB/km

    Installation Tensile Load

    66N

    Tensile Strength (Long/Short Term)

    80/240N

    Storage Temperature

    -40 to +85°C

    Operating Temperature

    -20 to +85°C

    Quality MPO/APC Male To 6 LC Uniboot Single Mode Breakout Cable OFNR Yellow Jacket for sale
