    FTTA CPRI Outdoor Fiber Patch Cord LC APC-LC APC 2 Cores OS2 LSZH Black Jacket

    Ask Lasest Price
    Brand Name : FIBERMANIA
    Model Number : LALA-SM024LBK
    Certification : RoHS, CE, ISO9001, VDE, CCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000 Pieces
    • Product Details
    • Company Profile

    FTTA CPRI Outdoor Fiber Patch Cord LC APC-LC APC 2 Cores OS2 LSZH Black Jacket

    FTTA CPRI Outdoor Fiber Patch Cord LC APC-LC APC 2 Cores OS2 LSZH Black Jacket

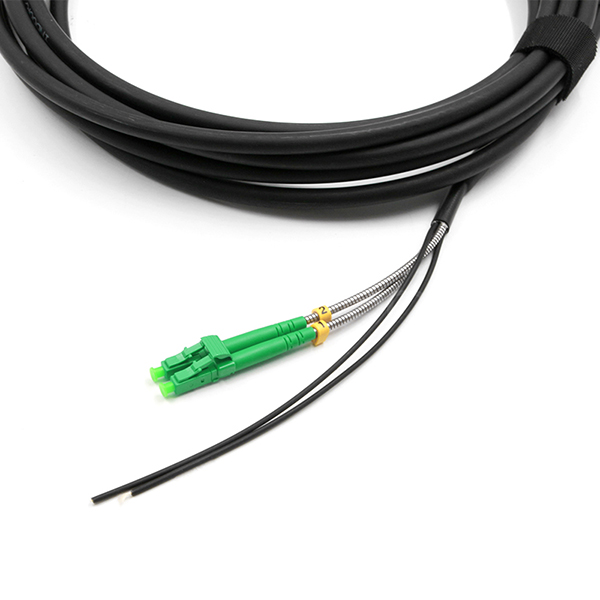

    FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.

    Features
    1. Fiber Cable: OS2 Single Mode GYFJH 2A1a(LSZH), 4.8mm, 2 Cores, 2mm

    2. Standard LC connector, can be connected with normal LC adapters

    3. Light weight, waterproof, dust-proof, moisture-proof, metal hard housing.

    4. Wall seal design, easy operation, strong and durable.

    Application
    1. Outdoor Fiber Optic Transmission

    2. CATV Networks

    3. LAN Testing/Measurement Instruments

    4. FTTA, FTTP, FTTX, WIMAX

    Fiber Parameters

    No.

    Items

    Unit

    Value

    1

    Core Diameter

    um

    9/125: G652D, G657A1, G657A2
    62.5/125: OM1: 62.5
    50/125: OM2, OM3, OM4, OM5

    2

    Cladding Diameter

    um

    125±10

    3

    Core Non-Circularity

    %

    ≤6.0

    4

    Cladding Non-Circularity

    %

    ≤2.0

    5

    Core-Cladding Concentricity

    um

    ≤1.0

    6

    Coating Diameter

    um

    245±10

    7

    Cladding-Coating Concentricity

    um

    ≤12.5

    8

    Attenuation (Max.)

    850nm

    dB/km

    3.0

    1300nm

    dB/km

    1.0

    1310nm

    dB/km

    0.35

    1550nm

    dB/km

    0.22

    Cable Parameters

    Items

    Value

    Fiber Count

    2 or 4

    Buffer

    Diameter

    0.85mm±0.05mm

    Material

    LSZH

    Simpelx Cable

    Diameter

    2.0mm±0.1mm

    Material

    LSZH

    Filler

    Diameter

    2.0mm±0.1mm

    Material

    LSZH

    Strength Member

    Kevlar

    Jacket

    Material

    LSZH

    Color

    Black

    Cable Weight

    Approx.

    47kg/km

    Characteristics Mechanical and Environmental

    Items

    Unite

    Value

    Tensile (Long Term)

    N

    200

    Tensile (Short Term)

    N

    400

    Crush( Long Term)

    N/10cm

    1100

    Crush (Short Term)

    N/10cm

    2200

    Bend Radius (Dynamic)

    mm

    20D

    Bend Radius (Static)

    mm

    10D

    Installation temperature

    ºC

    -20~+60

    Operation temperature

    ºC

    -30~+70

    Storage temperature

    ºC

    -30~+70

    Specification

    End face typeUPC
    Fiber typeG657A1
    Cable Diameter4.8mm
    Insertion loss≤ 0.3 dB
    Return loss≥50dB
    Attenuation at 1310nm0.36 dB/km
    Attenuation at 1550nm0.22 dB/km
    Tensile Strength200/400N (Long/Short Term)
    Crush Resistance1100/2200N (Long/Short Term)
    Operating Temperature-20ºC~70ºC
    Storage Temperature-40ºC~80ºC
    Outer Sheath MaterialLSZH
    Bending radius (Static/Dynamic)10D/20D
    LengthCustomized

    FAQ

    Q1: What is the warranty of FiberMania's fiber patch cord?
    A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

    Q2: Is it possible to customize our brand information on your fiber cable?
    A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

    Q3: Can you do 3D interferometer test?
    A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

    Q4: What is your MOQ of your products?
    A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

    Q5: Are free samples available from you?
    A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.

    Q6: Do you accept OEM and ODM orders?
    A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
