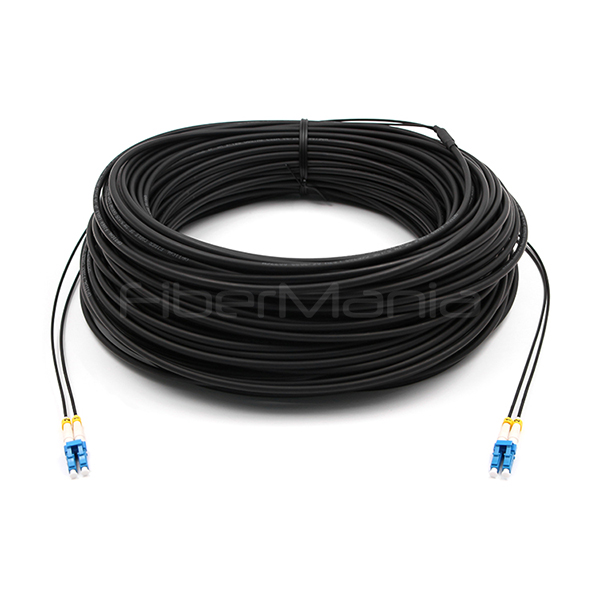

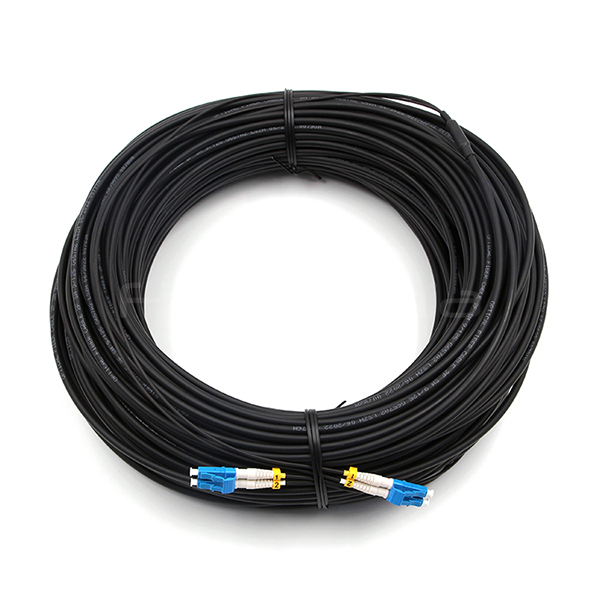

FTTA Outdoor Armored LC/UPC-LC/UPC 2 Cores OS2 LSZH Black Base Station Patch Cord

FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.

Features of Base Station Patch Cord
1. Easily add/install jumper cables for a future expansion
2. Factory-assembled cables for a fast on-site installation
3. IP67 IP68 water and dust protection
4. Flexibility with small bending radius and excellent cable routing properties
5. Equipped with customer specific power and fiber-optic connectors
6. Standard DuplexLC connector, well connected with standard LC adaptor
7. -40ºC~85ºC operating temperature
8. 445N (100 lbs) cable retention
9. Accepts 4.6mm to 5.0mm cable diameters

Application of Base Station Patch Cord
1. Multi-purpose Outdoor
2. For connection between distribution box and RRH
3. Deployment in Remote Radio Head cell tower applications

Fiber Parameters of Base Station Patch Cord

Cable Parameters

Characteristics Mechanical and Environmental

Specification

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
