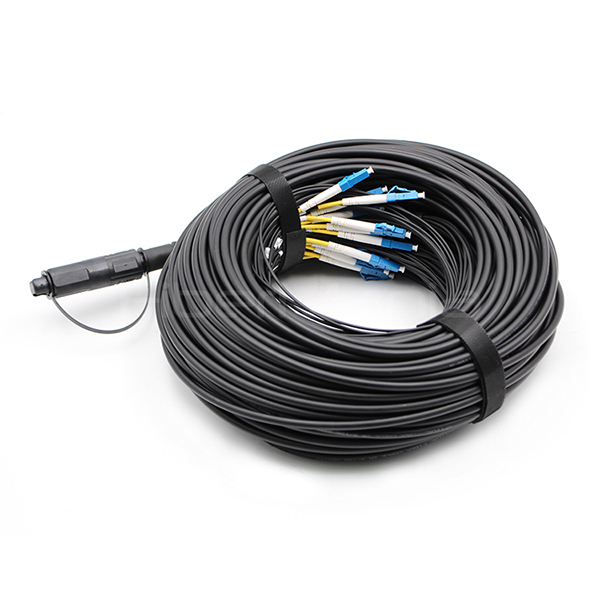

FTTA OptiTap MPO to LC UPC 12 Cores Outdoor Waterproof Cable 9/125 G.657.A1 LSZH Jacket

FTTA OptiTap MPO to LC UPC 12 Cores Outdoor Waterproof Cable 9/125 G.657.A1 LSZH Jacket provides quick installation solutions and has good performance mating with H receptacle, it can be compatible with all the similar products in market, compatible with Corning Opitap connector. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.

Fiber-to-the-antenna (FTTA) is a wireless site architecture where optical fiber is run all the way up the tower to replace those traditionally completed with heavier coax cabling. Important components such as remote radio units (RRUs) are also positioned at the top of the tower instead of that at the base location. FTTA solutions provide cable connectivity and electrical protection for remote radio head (RRH) equipment placed on cellular towers, rooftops, and other structures.

Our cable connectivity is mainly about FTTA patch cord which in our selection consists of two single mode fibers. At one end fibers are terminated to IP series waterproof connectors and at the other end are regular connectors compatible with RRU interface such as LC duplex. We can either provide factory assembled patch cables, or we can offer you connectors for your site's fast installation, we carry IP series, ODVA, OptiTap, H connector, ODC, RDC, AARC, FullAXS, RFE, IP-FX, Mini-SC, PDLC, NSN, and other field tactical connector types.

Features

1. G657A1 (Bend-insensitive single-mode fiber
2. Low bending losses, ideal for tight installations.
3. MPO on one end High-density multi-fiber connector
4. Outdoor-rated waterproof design
5. LSZH flame-retardant, non-toxic, suitable for outdoor/industrial use.
6. Low insertion loss and high return loss

Application

1. FTTH (Fiber-to-the-Home) networks – Outdoor distribution.
2. Data centers – High-density MPO trunk to LC breakout.
3. 5G infrastructure – Waterproof and ruggedized for outdoor use.
4. Industrial networks – Harsh environments requiring LSZH protection.

Fiber Parameters

Cable Parameters

Characteristics Mechanical and Environmental

Specification

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.

Shenzhen FiberMania Technology Co., Ltd. was founded in 2015 and is a national high-tech enterprise focusing on integrated technology and trade solutions for optical communication network transmission connections. Our company has nearly ten years of experience in design, manufacturing, and export, with products sold worldwide and receiving unanimous praise from customers in Europe and North and South America. FiberMania is equipped with advanced production equipment and highly reliable laboratory testing instruments, dedicated to becoming an industry-leading professional manufacturer that integrates R&D, manufacturing, and sales, providing the most valuable optical communication connection and transmission solutions for global customers.

The main products manufactured and distributed by FiberMania include MTP/MPO multi-core jumpers, conventional fiber optic jumpers, military field connectors and waterproof jumpers, base station extension jumpers, high-density fiber optic patch panels for data centers, module cassettes, server cabinets, indoor and outdoor multi-core optical cables, optoelectronic hybrid cables, passive optical devices, WDM (Wavelength Division Multiplexing) multiplexers, network cables, copper jumpers, keystone jacks, patch panels, and more.

Our company strictly adheres to the ISO 9001:2015 quality system, and our products comply with certifications such as CE, RoHS, UL, and ETL. We strive to provide high-quality products and excellent services to our customers. We are willing to work hand in hand with friends from all walks of life to create brilliance together.
