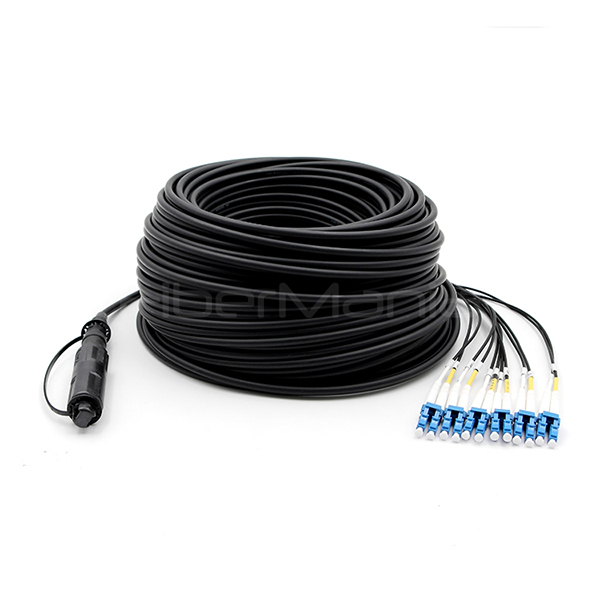

FTTA OptiTap MPO to 6xLC UPC Duplex Outdoor Waterproof Cable 9/125 G.657.A1 LSZH Jacket

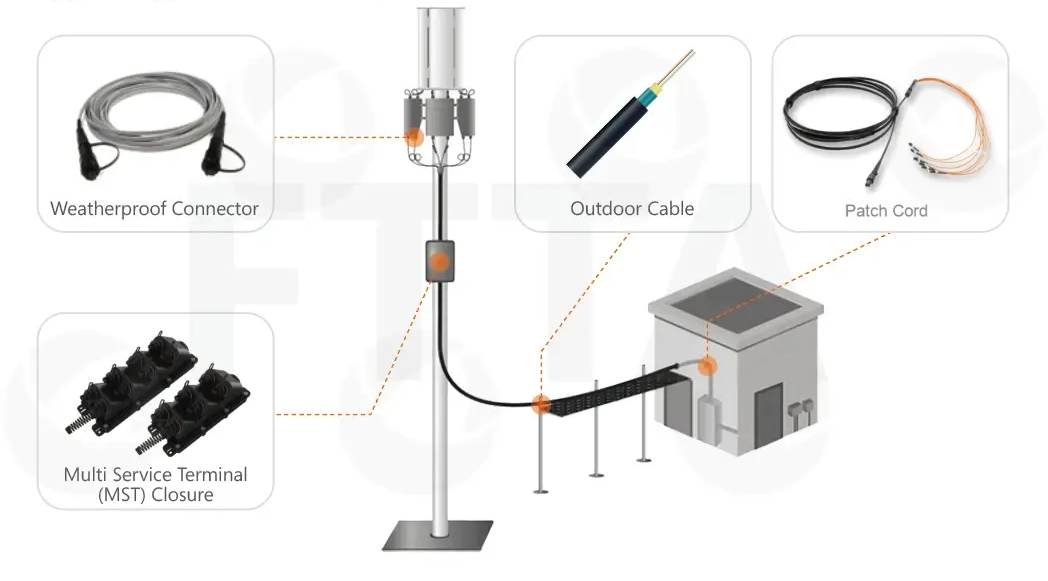

FTTA OptiTap MPO to 6×LC UPC duplex Outdoor Waterproof Cable is an outdoor waterproof fiber optic patch cord primarily used for fiber to antenna (FTTA) applications such as WiMax, LTE, and RRH. OptiTap connectors are designed for fast, easy, and cost-effective installation while protecting optical fibers from environmental factors such as extreme temperatures, humidity, etc. FTTA solutions are commonly used in mobile communication networks, especially fiber optic connections between 4G and 5G base stations, to support higher data transmission rates and wider coverage areas.

Features
1. Fiber Cable: OS2 Single Mode GYFJH, 4.8mm, 12Cores, LSZH Jacket, Black

2. Open bulkhead for easier access to SFP

3. Positive mechanical feedback to the operator when fully mated

4. Robust bayonet locking for easy, fast, and secure mating

5. Available for single mode and multimode

6. Waterproof, dustproof and corrosion-resistant

7. Protection level: IP67

8. Tensile data: Between junction and fiber cable ≥ 180N

9. Outer shell inflaming retarding: UL 94V-0

10. RoHS compliant

Application
1. Indoor and Outdoor applications

2. Outdoor & Military communication equipment connection.

3. Oil field, mine communication connection.

4. Far transmission wireless base station.

5. Optical fiber sensor.

6. Video surveillance system.

7. Railway signal control.

Fiber Parameters

Cable Parameters

Characteristics Mechanical and Environmental

Specification
