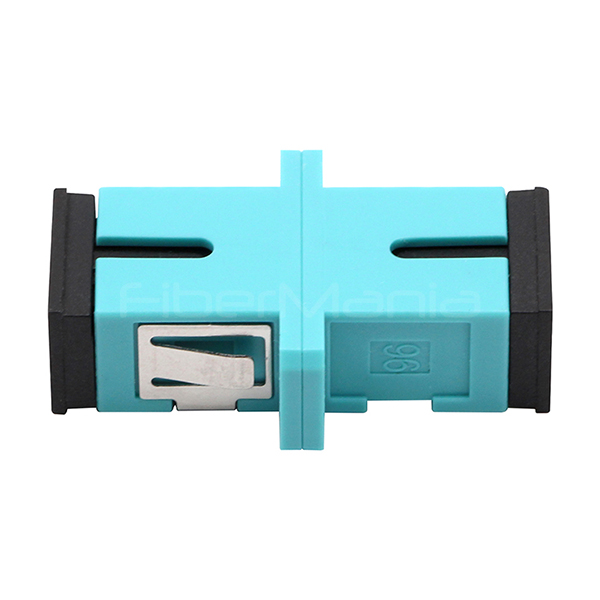

SC UPC To SC UPC OM3 Multimode Simplex Plastic Fiber Optic Adapter
– Aqua
SC simplex and duplex fiber optic adapters are specialized devices
designed for fiber optic connections. Simplex adapters facilitate
unidirectional signal transmission, while duplex adapters support
bidirectional transmission. Both feature a push-pull design that
provides high density and ease of use, enabling low insertion loss
and high return loss to ensure optimal signal quality over long
distances. These adapters are widely used in telecommunications
networks, data centers, and fiber optic communication systems,
making them particularly suitable for environments that demand high
bandwidth and exceptional performance. As essential components of
modern fiber optic connections, they play a crucial role in
enhancing connectivity and overall network efficiency.
Features
1. Available Custom Configuration
2. FC/SC/ST/LC four type optional
3. High precision of mechanical dimensions
4. Easy to use
5. PC, APC, UPC optional
6. Compact design
7. Connections Between Devices
8. Simplex/Duplex
9. High Transfer Efficiency
10. High stability and reliability
11. Excellent environmental &mechanical stability
Application
1. Test equipment
2. Data processing networks
3. High Power Laser
4. Optical Fiber Amplifier
5. Premise installations
6. Wide area networks (WAN)
7. Local area networks (LAN)
8. Telecommunication networks
9. Optical Distribution Frame
10. Optical Network Equipments
Mechanical Specifications
| Operating Temperature | -40 to +75º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability | 500 Mating Cycles, clean every 25, <0.2dB change |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
