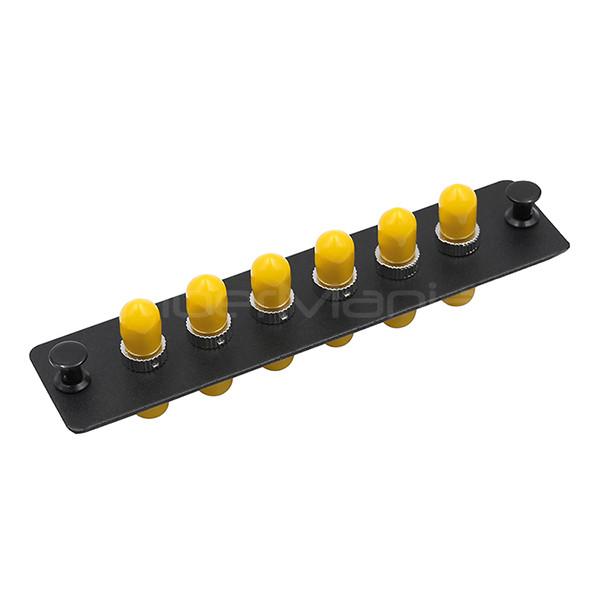

ST Adapter Panel 6 Ports Loaded W/6 ST Single Mode Or Multimode
Adapter
The LGX ST series adapter panel comes pre-loaded with fiber
adapters, offering a reliable means to connect backbone-to-backbone
or backbone-to-horizontal fiber cabling. When used with LGX series
enclosures and splice trays for fusion splicing applications or
pre-terminated Plug-and-Play cabling systems, it provides a more
stable and compact solution for your network.
The LGX High Density Series is a versatile option available in
multiple sizes (1U, 2U, and 4U) and styles, making it ideal for
building backbones, data centers, and enterprise applications.
Features
1. Visible port identification helps to follow array connection
2. LGX design
3. Fast and easy installation for fiber optic patch panel
4. Available in grey and black colors
5. Available in white and black buckle
Application
1. Datacenter
2. Network installations
Mechanical Specifications
| Operating Temperature | -40 to +75º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability | 500 Mating Cycles, clean every 25, <0.2dB change |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
