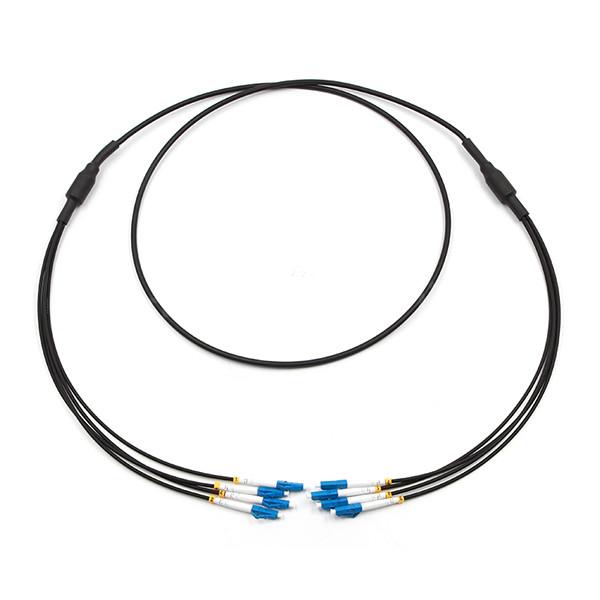

LC To LC 4 Strand Single Mode 9/125 LSZH Breakout Cable 3.0mm Black
Breakout Cable is a type of fiber optic cable that contains
multiple fibers, with multiple branches branching off from the
trunk cable at both ends so that they can be individually connected
to different devices. This design makes Breakout Cable very
suitable for application scenarios that require quick connections
and disconnections, such as data centers and telecom rooms. This 4
strand breakout fiber optic cable contains 4 single-mode fibers,
each with a core diameter of 9 microns and a cladding diameter of
125 microns, and it is terminated with LC UPC connectors on each branches. It is a fiber optic cable
suitable for high bandwidth and long-distance transmission, with
good fire resistance and easy connection characteristics, widely
used in data centers, communication networks and other fields.
Applications
1. Data center cabling
2. Industrial applications
3. Fiber optic communication networks
4. Fiber optic equipment and instrument
5. Long-distance, outdoor/indoor cabling, trunking, etc
Features
1. Multi-fiber solutions from 4 fiber up to 144 fibers regularly
2. Various fiber types: OS2, OM1, OM2, OM3, OM4 and OM5
3. Full Range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors
available
4. PVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen)
jacket upon request
5. Strict quality testing: Insertion Loss and Return Loss 100%
tested
6. Customized length, staggering, connector type, fan-out style,
and labeling
Specifications
| Characteristics | Standard Fiber Cable Assemblies |
| Connector Type | SC/LC/FC/ST/MTRJ/MPO/MTP/MU/DIN/SMA |
| Polish Type | PC/UPC/APC |
| Ferrule Materials | Zirconia Ceramic |
| Fiber Type | SM/MM |
| Testing Wavelength | 1310±30/1550±30nm or 850±30/1300±30nm |
| Min. Bend Radius(Fiber Core) | 15mm |
| Min. Bend Radius(Fiber Cable) | 20/10D (Dynamic/Static) |
| Exchangeability | ≤0.2dB |
Insertion Loss(dB) | ≤0.2dB(PC/UPC) |
Return Loss(dB) | MM≥35dB(PC/UPC); SM≥55dB(PC/UPC), ≥55dB(APC) |
| Polarity | A (Tx) to B (Rx) |
| Operating Temp. (C) | -20℃ ~+70℃ |
| Storage Temp. (°C) | -40℃ ~ +85℃ |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
