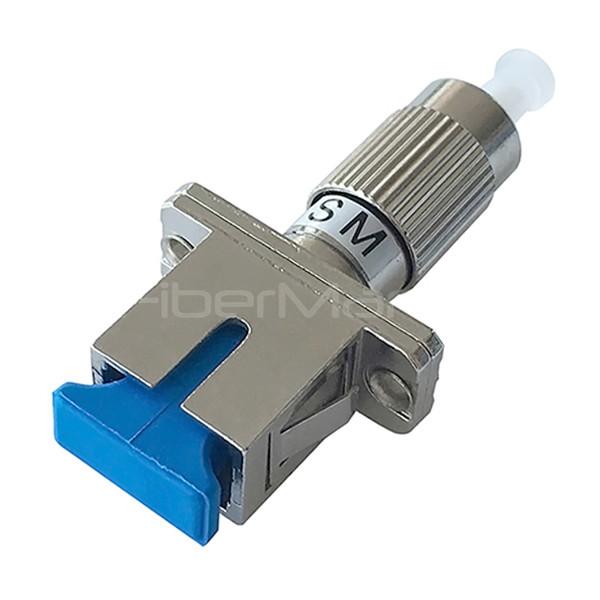

FC Male To SC Female Single Mode Simplex Fiber Optic Hybrid Adapter
A fiber optic adapter, sometimes also called a coupler, is a small
device designed to terminate or link the fiber optic cables or
fiber optic connectors between two fiber optic lines.
The FC-SC Hybrid Fiber Optic Adapter is a special style of fiber
optic adapter that supports the precision connection of different
types of fiber optic connectors. It is specially designed to
incorporate the Small Form Factor FC into SC configured
environment. The compact design enables network operators to reduce
costs via space savings, and by eliminating hybrid cable
assemblies.
Features
1. Precision connection with sleeve
2. Extending Fiber Connection with Adapters
3. Low insertion lose, High echo lose
4. Good interchangeability and reliability
5. Meet IEC and ROHS standards
6. Highprcision of mechanical dimensions Accuracy
Application
1. Data center
2. Telecommunication networks
3. Premise installations
4. LAN and WAN
5. FTTX
6. Broadband network
Mechanical Specifications
| Operating Temperature | -40 to +75º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability | 500 Mating Cycles, clean every 25, <0.2dB change |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
