Data Center CAT.6A Unshielded (UTP) 28AWG Slim Ethernet Network
Patch Cable
CAT.6A UTP Slim Patch Cable is a Category 6A unshielded twisted
pair cable that supports data transmission rates of up to 10Gbps,
with a bandwidth frequency of 500MHz, enabling high-speed data
transmission within a distance of 100 meters. Compared to

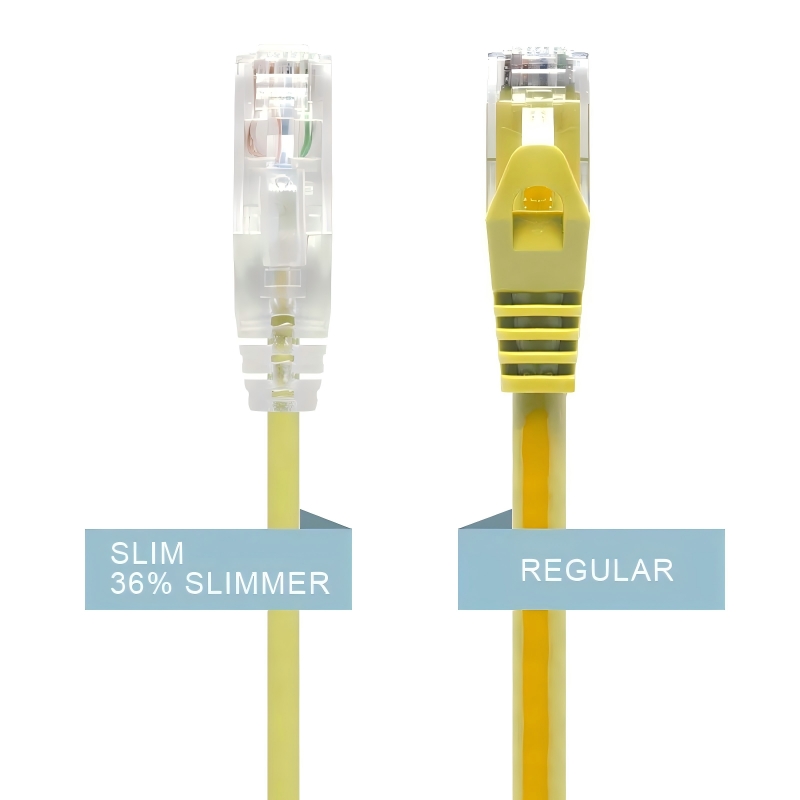

traditional CAT.6A cables, Slim Patch Cable has a finer wire
diameter. Usually, regular CAT.6A cables use 24AWG wire gauges,
while Slim CAT.6A cables generally use 28AWG wire gauges, which
means that the diameter of Slim CAT.6A cables is significantly
smaller than that of regular CAT.6A cables. The outer diameter of
Slim CAT.6A cables is about 3.8mm, while the outer diameter of
regular CAT.6A cables is about 6.1mm, almost reducing the size by
40%. Due to its finer design, Slim CAT.6A cables take up less
space, which can improve airflow and equipment cooling in data
centers. This is particularly important for machines with large
chassis and also helps with equipment maintenance. It is a
high-performance, ultra-thin Ethernet cable designed for modern
digital environments, suitable for various scenarios that require
high-speed data transmission and space saving.
FiberMania’s 10 Gigabit Ethernet Ultra Thin Cat6a unshielded patch
cables are designed for high density, high-performance networks in
the data center or where space, maximum speeds, and reliability are
required. It consists of an RJ45 male on one end and an RJ45 male

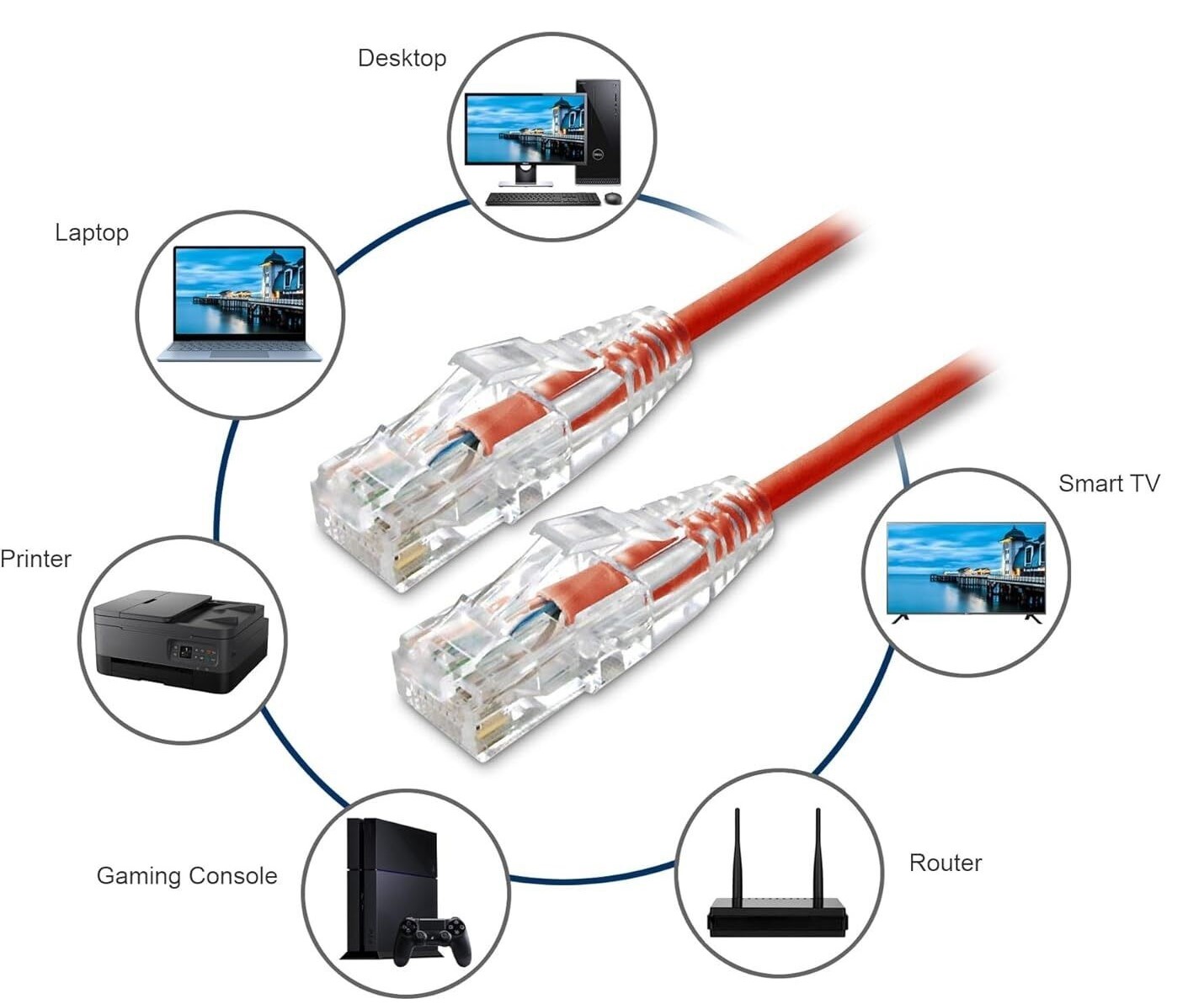

on the other. It is typically used for 10Gb Ethernet network
connections such as patch panels, switches, computers, and routers.
Its ultra-thin cable design works perfectly in high-density server
room applications.
Features:
1. Cable diameter 3.8mm, optimize the space in high-density
environments
2. 28AWG 4-pair stranded bare copper wires
3. RJ45 plug with 50-micron gold plating contacts
4. Snagless boot design
5. Pass Fluke Channel Test and Component Test
6. RoHS compliant
7. Supports 10 Gigabit Ethernet
Applications:
1. 10GBASE-T Ethernet
2. Backbone aggregation
3. Datacenter I/O Consolidation
4. Digital video and broadband/baseband analog video
5. Voice over Internet Protocol (VoIP)
Specification:
Product | CAT5E/CAT6/CAT6A/CAT7/CAT8 Patch Cord |
Shielding Type | UTP/FTP/UFTP/SFTP/FFTP/SSTP |
Conductor | 1/2/4 Pairs |
Conductor Material | Stranded Bare Copper |
Connectors Type | RJ45 plug with 50 micron gold plating contacts |
Jacket Material | PVC/LSZH/PE |
Color Option | Grey, Blue, Green, Red, White, Black, Yellow, Orange or customized |
Length | 1-100M or customized |
Flammability Grade | CM, CMR, CMP |
AWG | 23/24/26/28/32/36AWG |
Wiring | T568A/T568B |
Certification | ISO9001/UL/ETL/CE/RoSH |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
