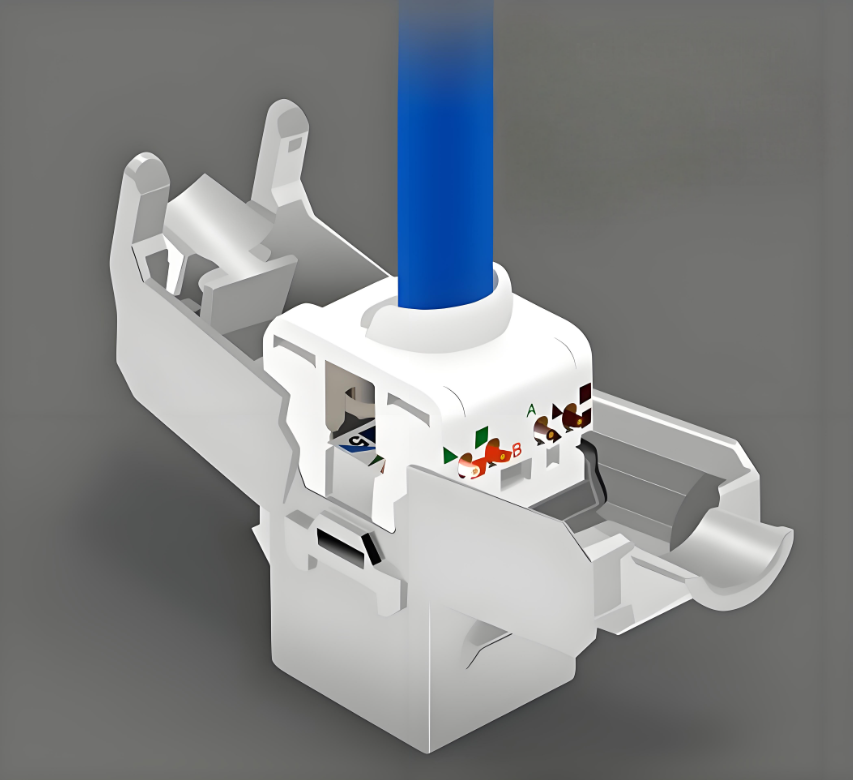

CAT.6A FTP Zinc Die-casting Toolless Keystone Jack Module 180
Degree Slim Type
A keystone jack is a female connector used in data communications,
particularly local area networks (LANs). The jack is usually
mounted in a wall plate or patch panel. A keystone plug is the
matching male connector, usually attached to the end of a cable or
cord.
A principal advantage of keystone connectors is their versatility.
Several types of keystone jack can be mounted on a single patch
panel. They are available in unshielded and shielded forms, and can
accommodate cords and cables having various numbers of conductors.
Features:
1. Voltage Rating: 150 VAC
2. Current Rating: 1.5 AMP Max.
3. Contact Resistance: 20 M-ohm
4. Insulation Resistance: 500 M-ohm
5. Dielectric Strength: 1000 VAC RMS 60Hz,1 MIN
Mechanical:
1. Housing Material: PC (UL94V-0)
2. Contact Material: PC (UL90V-0)
3. Contact: phosphor bronze with nickel plating
4. RJ45 Jack: 750 times MIN.
5. IDC Life: 200 times MIN.
6. Wire: 22-26 AWG Solid
7. Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
8. Retentiveness of insertion structure: 50N 60±5s
9. Termination: Krone, 110, Dual Type
Application:
1. Data centers (high-density installations)
2. Enterprise cabling (office networks, server rooms)
3. Industrial environments (where EMI protection is crucial)
4. Structured cabling systems (patch panels, wall outlets)
Specification:
| Product Name | CAT.3/CAT.5e/CAT.6/CAT.6A/CAT.7/CAT.8 keystone jack |
| Product Color | Black, White, Silver, Blue, Yellow, Green, Red, Orange |
| Wiring Scheme | T568A/T568B |
| Housing Material | ABS/PC |
| Plating | 3u inch, 6u inch, 10u inch, 15u inch, 20u inch, 30u inch, 50u inch |
| Working life | 750 times Min for jack; 200times min for IDC |
| Humidity | 10% ~ 90%RH |
| Temperature | -20ºC~ 60ºC |
| Voltage rating | 125VCA RMS |
| Current rating | 1.5Amp |
| Contact resistance | 100 MILLIOHMS MAX |
| Insulation Resistance | 1000 MEGOHMS MIN@500VDC |
| Certificate | ROHS |
