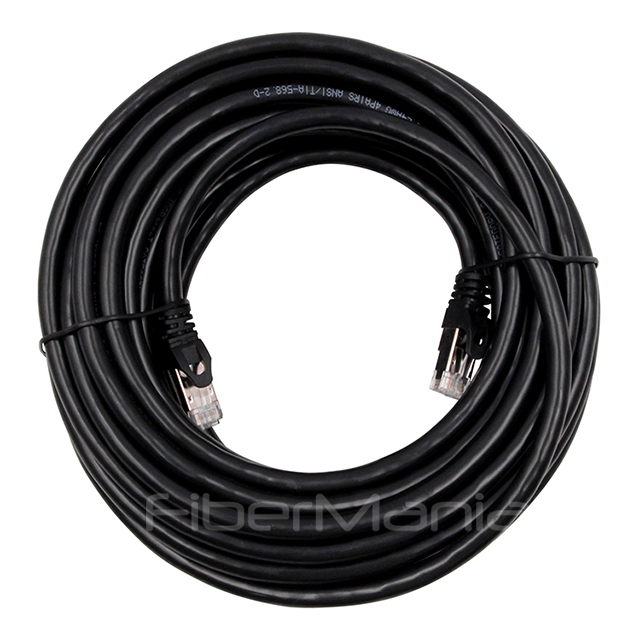

Ethernet CAT.8 Double Shielded SFTP 40G 24AWG Copper Patch Cable
Ethernet CAT.8 Double Shielded SFTP 40G 24AWG Copper Patch Cable is
a category 8 Ethernet cable designed to support a transmission
speed of 40Gbps, suitable for data centers and high-performance
network equipment. The 24AWG conductor diameter can withstand high
current and signal transmission, while the SFTP structure provides
stronger anti-interference performance for the product, making it
suitable for use in environments with strong electromagnetic
interference. It used for direct connections between devices, such
as switches, routers, servers, etc. This copper patch cable is
mainly used in high-speed, low latency network environments to
ensure the stability and speed of data transmission.
FiberMania CAT.8 SFTP supports the highest data transfer rate and
bandwidth frequency of any RJ45 network cable. It allows for 2GHz
an incredible transfer speed providing for quality-enhancing
massive headroom. With its feature, it’ll be a cost-effective
alternative to SFP+ cables.
Specification of network cable:
| Product | CAT5E/CAT6/CAT6A/CAT7/CAT8 Patch Cord |
| Shielding Type | UTP/FTP/UFTP/SFTP/FFTP/SSTP |
| Conductor | 1/2/4 Pairs |
| Conductor Material | Stranded Bare Copper |
| Connectors Type | RJ45 plug with 50 micron gold plating contacts |
| Jacket Material | PVC/LSZH/PE |
| Color Option | Grey, Blue, Green, Red, White, Black, Yellow, Orange or customized |
| Length | 1-100M or customized |
| Flammability Grade | CM, CMR, CMP |
| AWG | 23/24/26/28/32/36AWG |
| Wiring | T568A/T568B |
| Certification | ISO9001/UL/ETL/CE/RoSH |
Features of network cable:
1. 4 Pair 24AWG/26AWG/28AWG Stranded Bare Copper
2. 50 Micron Gold Plated RJ45 Connector
3. Pass Fluke CAT8 Channel Test
4. 2GHz Bandwidth
5. 40Gbps Transmission speed
6. RoHS PVC or LSZH Jacket
7. Meet TIA/EIA 568-C.2 standard
Applications of network cable:
1. 40GBASE-T Ethernet
2. Backbone aggregation
3. Datacenter I/O Consolidation
4. Digital video and broadband/baseband analog video
5. Voice over Internet Protocol
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free
from defects in material and workmanship for a period of five (5)
years from the date of supply. All fiber optic bulk cables are UL
profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber
cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM
total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have
the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we
request 1km as the total length of the bulk cable, you may consider
stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of
our customers' projects provided that the total cost is under 50 US
dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start
in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our
engineers can help you with your current design and even can open
the new tooling for your specific project.
